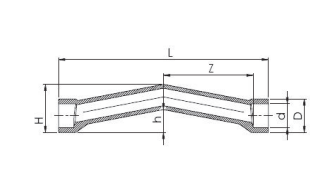

| SDR | Art. No. | Size d (mm) | D | L | Z | Packing Pouch / Box |
| 6 , 7.4 | 1701BB0001N | 20 | 29.0 | 80.0 | 80.0 | 10/200 |
| SDR | Art. No. | Size d (mm) | D | L | Z | Packing Pouch / Box |
|
9
|
1701BB0002N | 25 | 34.0 | 100.0 | 84.0 | 10/120 |
|
11
|
1701BB0003N | 32 | 43.0 | 120.0 | 102.0 | 5/55 |
The QTherm PP-R Bypass Bend, available in 25mm to 32mm dimensions, is meticulously engineered to ensure seamless integration within the QTherm PP-R piping system. Crafted from high-quality polypropylene-random (PP-R), it guarantees durability, corrosion resistance, and longevity in various plumbing applications. Its innovative design allows for smooth redirection of fluid flow, optimizing system performance and minimizing energy consumption. With precision engineering and adherence to international standards, the QTherm PP-R Bypass Bend ensures reliability and efficiency in every installation.
| SDR | Art. No. | Size d (mm) | D | L | Z | Packing Pouch / Box |
| 6 , 7.4 | 1701BB0001N | 20 | 29.0 | 80.0 | 80.0 | 10/200 |
| SDR | Art. No. | Size d (mm) | D | L | Z | Packing Pouch / Box |
|
9
|
1701BB0002N | 25 | 34.0 | 100.0 | 84.0 | 10/120 |
|
11
|
1701BB0003N | 32 | 43.0 | 120.0 | 102.0 | 5/55 |
