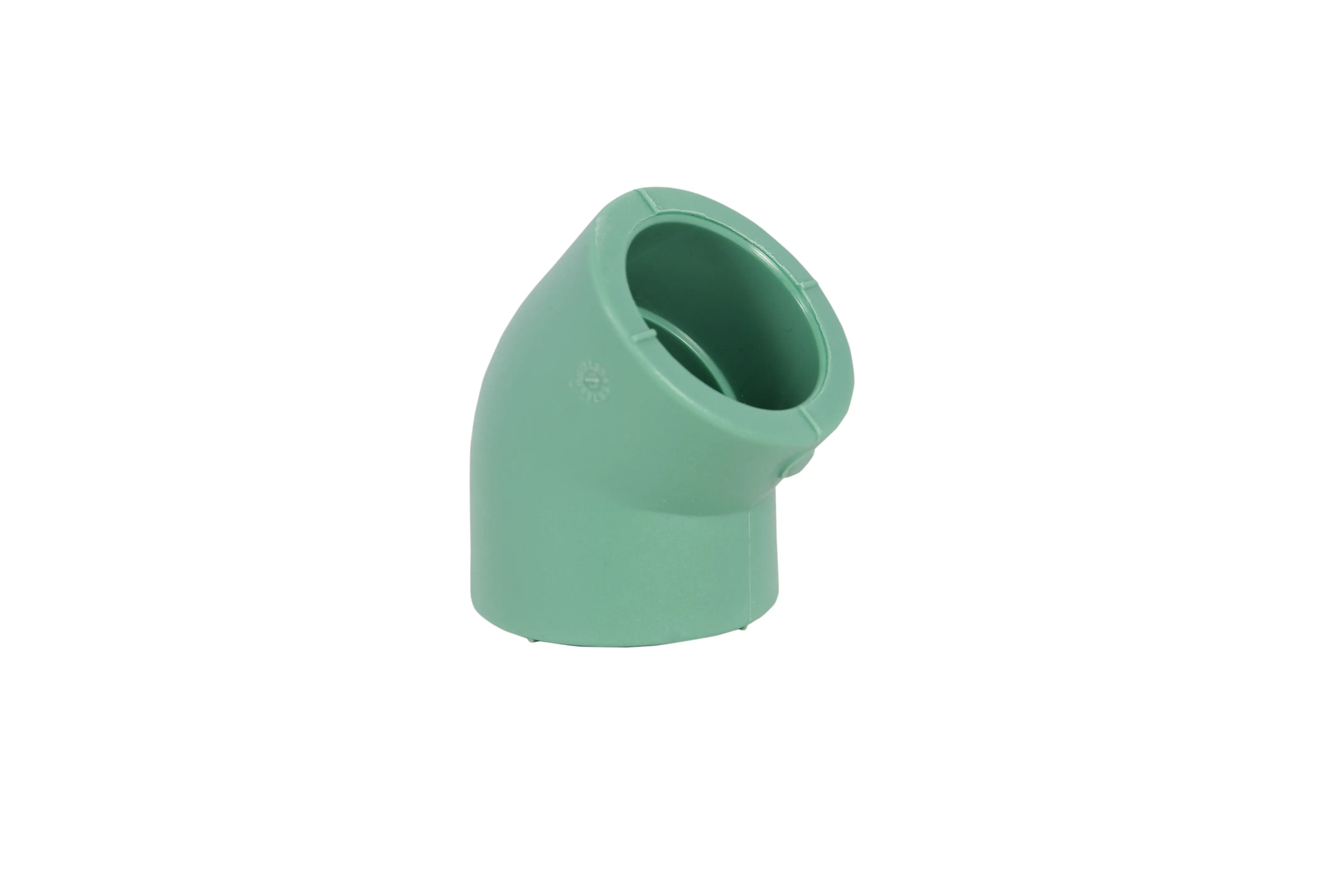

ELBOW 45°

QTherm PP-R Piping System's Elbow 45° is meticulously crafted to ensure seamless integration into plumbing systems, offering a reliable solution for directional changes in piping layouts. Available in sizes from 20mm to 200mm, these fittings are engineered to withstand various pressures and temperatures, making them suitable for a wide range of applications. Crafted from durable materials, they exhibit excellent resistance to corrosion and chemical degradation, ensuring longevity and minimal maintenance requirements. With precision engineering and adherence to industry standards, QTherm PP-R Elbow 45° fittings guarantee optimal performance and reliability in plumbing installations.

Feel Free To Contact We're just a click away!
Get in touch with us for all your inquiries.

Product Variants

SDR Art. No. Size d (mm) D L Z Packing Pouch / Box
  1701E45001N 20 29.0 19.5 5.0 10 / 600
  1701E45002N 25 34.0 22.0 6.0 10 / 450
5 1701E45003N 32 43.0 25.5 7.5 5 / 220
6 1701E45004N 40 52.0 30.5 10.0 5 / 140
  1701E45005N 50 65.0 36.0 12.5 5 / 60
7.4 1701E45006N 63 83.0 44.0 16.5 1 / 35
  1701E45007N 75 100.0 47.5 17.5 1 / 25
9 1701E45009N 90 120.0 54.0 21.0 1 / 15
11 1701E45010N 110 145.0 62.0 25.0 1 / 8
  1701E45012N 125 165.0 77.0 37.0 1 / 6
  1701E45016N 160 213.0 79.0 40.0 1 / 4
  1701E45020N 200 163.0 201.0 41.5 1 / 1

Dimension Diagram
