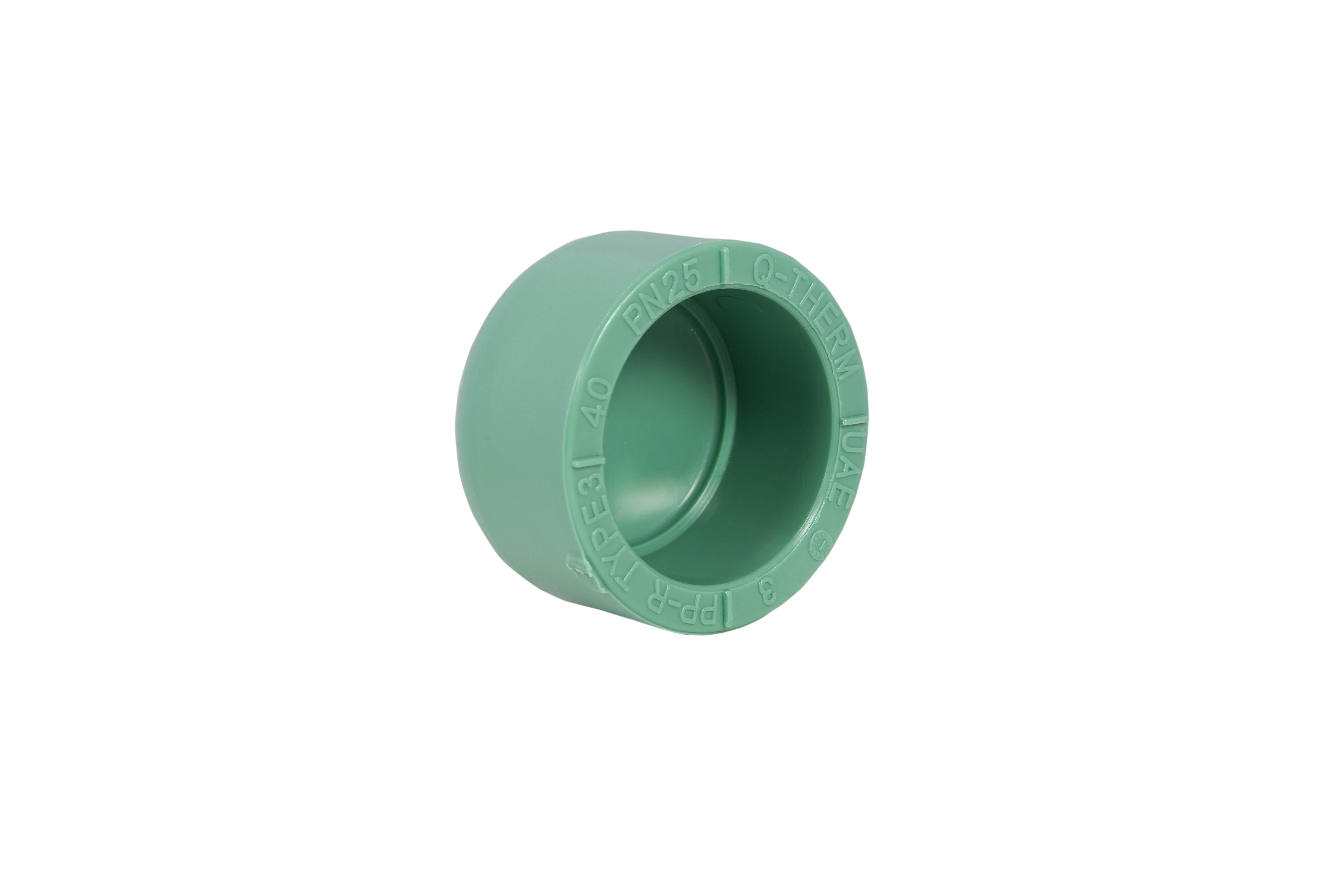

END CAP

The QTherm PP-R End Cap offers a reliable solution for terminating pipelines within the QTherm PP-R piping system. Crafted from high-quality polypropylene-random (PP-R), this end cap ensures exceptional durability, corrosion resistance, and longevity across a wide range of plumbing applications. With sizes available from 20mm to 200mm, it caters to various pipe diameters, providing a secure and leak-proof seal at pipeline terminations. Its streamlined design allows for easy installation, promoting efficiency and reducing installation time. Compliant with international standards and subjected to rigorous quality control procedures, the QTherm PP-R End Cap guarantees reliability and performance, making it an essential component for plumbing installations of all scales.

Feel Free To Contact We're just a click away!
Get in touch with us for all your inquiries.

Product Variants

SDR Art. No. Size d (mm) D L Z Packing Pouch / Box
5
1701EC0001 N 20 29.0 21.0 6.5 10 / 1100
1701EC0002N 25 34.0 24.0 8.0 10 / 800
1701EC0003N 32 43.0 27.0 9.0 5 / 450
SDR Art. No. Size d (mm) D L Z Packing Pouch / Box
6
1701EC0004N 40 52.0 31.0 10.5 5 / 250
1701ECOOOSN 50 65.0 36.0 12.5 5 / 160
7.4
1701EC0006N 63 83.0 42.0 14.5 1 / 100
1701EC0007N 75 100.0 48.0 18.0 1 / 55
  1701EC0009N 90 120.0 54.5 21.5 1 / 35
SDR Art. No. Size d (mm) D L Z Packing Pouch / Box
9
1701EC0010N 110 145.0 60.0 23.0 1 / 20
1701EC0012N 125 165.0 87.0 47.0 1 / 20
SDR Art. No. Size d (mm) D L Z Packing Pouch / Box
11
1701EC0016N 160 213.0 95.0 50.0 1 / 8
1701EC0020N 200 200.0   50.0 1 / 6

Dimension Diagram
